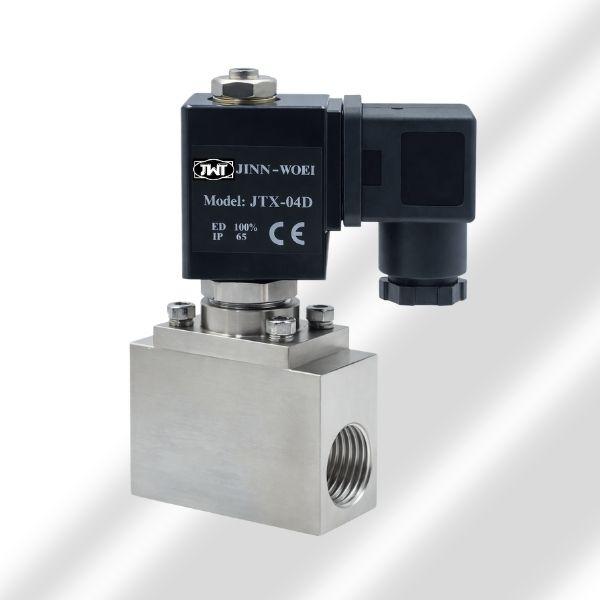

2/2 Way Piston-Type Solenoid Valve

2/2 Way Piston-Type Solenoid Valve
Product ID: JTX
  • 2/2 Way Normally Closed Piston-Type Solenoid Valve, stainless steel body
  • Compact size with a wide range of applications and stable performance.
Specifications:
  • IP65 waterproof coil, compliant with CE standards.
  • Sealing materials：VITON and PTFE
  • Applicable fluids：Gas and liquid.
Features:
  • Applicable ambient temperature: -20°C ~ 65°C.
  • Applicable fluid temperature: 0°C ~ 150°C.
  • Working pressure: 0.1~16 kgf/cm².
  • Voltage difference tolerance: ±10%.
See more complete detail
Model Orifice Size CV Operating Pressure kgf/cm²
Liquid Gas
AC DC AC DC
JTX-03 10.0 1.5 0.1~16 0.1~16 0.1~16 0.1~16
JTX-04 10.0 1.5 0.1~16 0.1~16 0.1~16 0.1~16
Order Information:
  • Minimum Order: Negotiable
  • Branded Product
