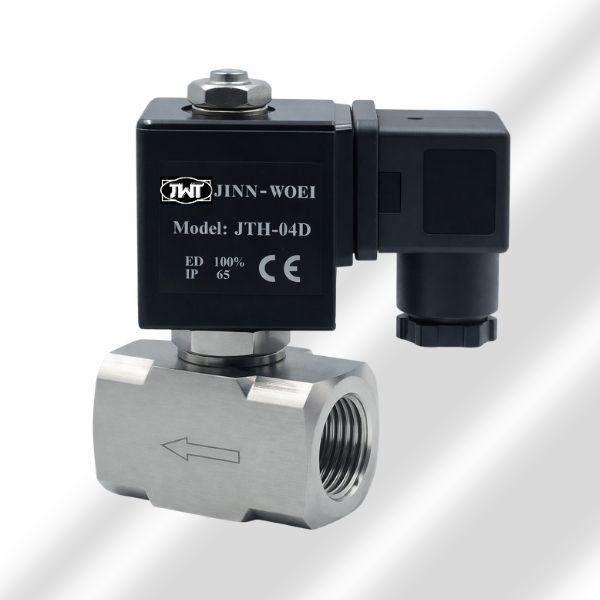

2/2 Way Piston-Type High-Pressure Solenoid Valve

2/2 Way Piston-Type High-Pressure Solenoid Valve
Product ID: JTH
  • 2/2 Way Normally Closed Piston-Type High-Pressure Solenoid Valve, stainless steel body.
  • Compact size with a wide range of applications and stable performance.
Specifications:
  • IP65 waterproof coil, compliant with CE standards.
  • Sealing materials：VITON and PTFE
  • Applicable fluids：Gas and liquid.
Features:
  • Applicable ambient temperature: -20°C ~ 65°C.
  • Applicable fluid temperature: -10°C ~ 80°C.
  • Working pressure: 0.5~150 kgf/cm².
  • Voltage difference tolerance: ±10%.
See more complete detail
Model Orifice Size CV Operating Pressure kgf/cm²
Liquid Gas
AC DC AC DC
JTH-01 6.0 0.8 0.5~150 0.5~90 0.5~150 0.5~90
JTH-02 6.0 0.8 0.5~150 0.5~90 0.5~150 0.5~90
JTH-03 6.0 0.8 0.5~150 0.5~90 0.5~150 0.5~90
JTH-04 6.0 0.8 0.5~150 0.5~90 0.5~150 0.5~90



Conventional Voltage AC220V / DC24V
Conventional Power 25VA / DC18W
Insulation Grade F.H
Coil Connection Model DIN43650A
Order Information:
  • Minimum Order: Negotiable
  • Branded Product
