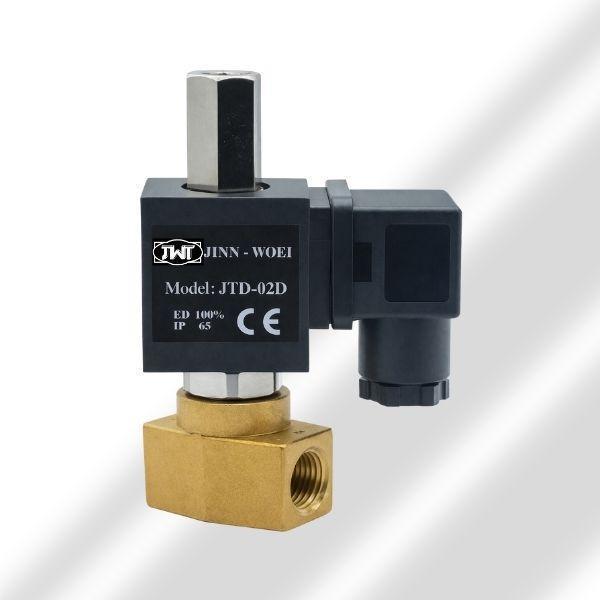

3/2 Way Direct-Acting Solenoid Valve (NC)

3/2 Way Direct-Acting Solenoid Valve (NC)
Product ID: JTD-NC
  • 3/2 Way Direct-Acting Normally Closed Solenoid Valve, forged brass valve body.
  • Compact size with a wide range of applications and stable performance.
Specifications:
  • IP65 waterproof coil, compliant with CE standards.
  • Applicable fluids: water, air, light oil.

Features:
  • Applicable ambient temperature: -20°C ~ 65°C.
  • Applicable fluid temperature: -10°C ~ 130°C. If the heat-resistant temperature needs to be used up to 130°C, there are other seal materials to choose from, please consult the sales personnel.
  • Working pressure: 0~13 kgf/cm².
  • Voltage difference tolerance: ±10%.
See more complete detail
Model Port Size Weight(kg)   Orifice Size CV Operating Pressure kgf/cm² Size(mm)
Water Air Light Oil L C H B
JTD-01 1/8" 0.35
1.5 0.09 0~13 0~13 0~11 40 52 64 28
2.0 0.15 0~11 0~11 0~9 40 52 64 28
JTD-02 1/4" 0.33 2.5 0.23 0~9 0~9 0~7 40 52 64 28
3.0 0.27 0~6 0~6 0~4 40 52 64 28
3.5 0.32 0~4 0~4 0~2.5 40 52 64 28
Order Information:
  • Minimum Order: Negotiable
  • Branded Product
