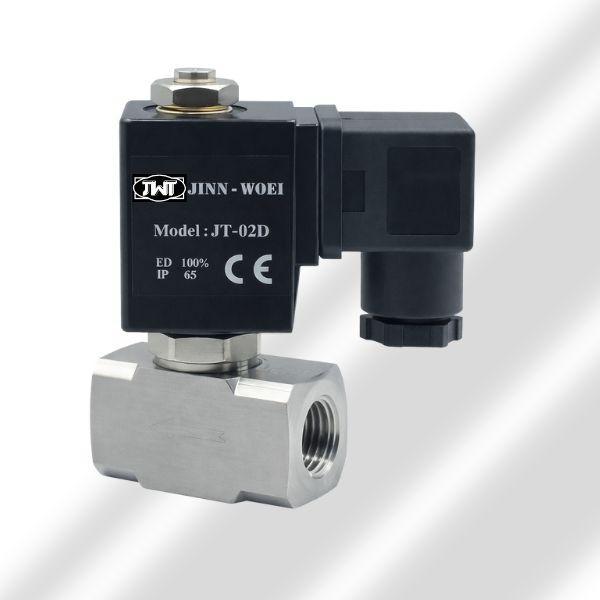

2/2 Way Direct-Acting Solenoid Valve

2/2 Way Direct-Acting Solenoid Valve
Product ID: JT
  • 2/2 Way Direct-Acting Normally Closed Solenoid Valve, stainless steel body.
  • Compact size with a wide range of applications and stable performance.
Specifications:
  • IP65 waterproof coil, compliant with CE standards.
  • Sealing materials：VITON; other rubber materials are also available upon request.
  • Applicable fluids：Water, Gas and liquid.
Features:
  • Applicable ambient temperature: -20°C ~ 65°C.
  • Applicable fluid temperature: -10°C ~ 80°C.
  • Working pressure: 0~30 kgf/cm².
  • Voltage difference tolerance: ±10%.
See more complete detail
Model Orifice Size CV Operating Pressure kgf/cm²
Water Gas Liquid
AC DC AC DC AC DC

JT-01

JT-02

JT-03

JT-04

 1.5 0.08 0~30 0~25 0~30 0~25 0~30 0~25
2.0 0.14 0~25 0~20 0~25 0~20 0~20 0~20
2.5 0.23 0~20 0~15 0~20 0~15 0~15 0~15
3.0 0.25 0~13 0~13 0~13 0~13 0~10 0~10
4.0 0.6 0~8 0~8 0~8 0~8 0~6 0~6



Conventional Voltage AC220V / DC24V
Conventional Power AC22VA / DC13W
Insulation Grade F.H
Coil Connection Model DIN43650A
Order Information:
  • Minimum Order: Negotiable
  • Branded Product
