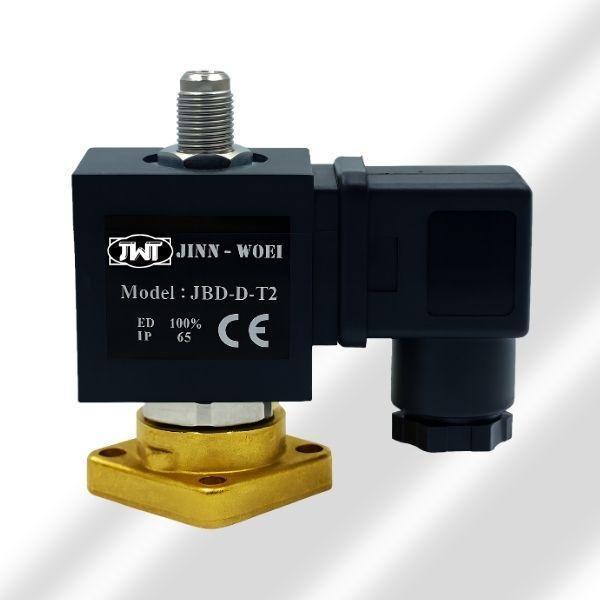

3/2 Way Manifold-Mounted Solenoid Valve

3/2 Way Manifold-Mounted Solenoid Valve
Product ID: JBD-NC
  • 3/2 way normally closed solenoid valve, forged copper body.
  • Compact design, widely used for automatic control of actuators such as cylinders and valves, and also commonly applied in air compressor systems.
Specifications:
  • IP65 waterproof coil, compliant with CE standards.
  • Applicable fluids: water, air, light oil.
Features:
  • Applicable ambient temperature: -20°C ~ 65°C.
  • Applicable fluid temperature: -10°C ~ 130°C. If the heat-resistant temperature needs to be used up to 130°C, there are other seal materials to choose from, please consult the sales personnel.
  • Working pressure: 0~16 kgf/cm².
  • Voltage difference tolerance: ±10%.
Model   Orifice Size CV Operating Pressure kgf/cm²
Top Valve Body Top Valve Body Water Air Light Oil
AC DC AC DC AC DC
JBD 2.4 1.2 0.21 0.06 0~16 0~16 0~16 0~16 0~16 0~16
2.4 1.5 0.21 0.09 0~10 0~8 0~10 0~8 0~10 0~8
Order Information:
  • Minimum Order: Negotiable
  • Branded Product
