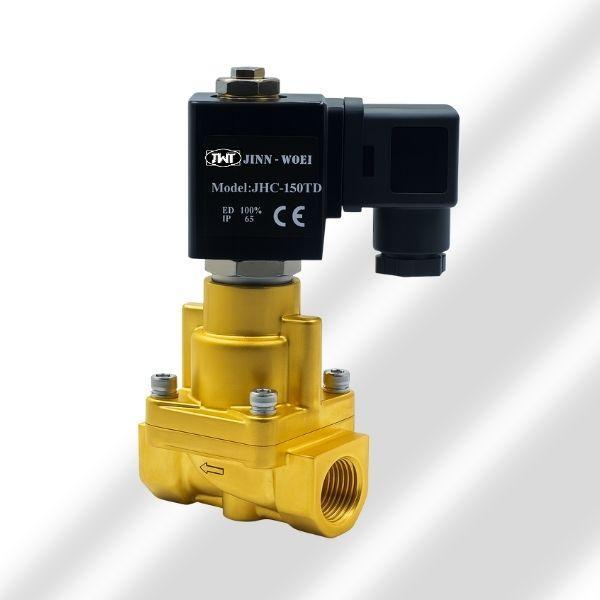

2/2 Way Pilot-Operated Solenoid Valve

2/2 Way Pilot-Operated Solenoid Valve
Product ID: JHC
  • 2/2 Way Normally Closed Pilot Operated Solenoid Valve, forged brass valve body.
  • Compact design with wide application range and stable performance.
Specifications:
  • IP65 waterproof coil, compliant with CE standards.
  • Seal material：PTFE
  • Applicable fluids：Steam, Gas and Liquid.
Features:
  • Applicable ambient temperature: -20°C ~ 65°C.
  • Fluid temperature：0°C ~ 180°C.
  • Working pressure: 0.5~25 kgf/cm².
  • Voltage difference tolerance: ±10%.
Model Port Size CV Orifice Size Operating Pressure kgf/cm² Max. Fluid Temper.
Liquid Gas Steam
AC DC AC DC AC DC
JHC-150 1/2" 4.5 15mm 0.5~25 0.5~20 0.5~25 0.5~20 0.5~25 0.5~20 180
JHC-200 3/4" 8.0 20mm 0.5~25 0.5~20 0.5~25 0.5~20 0.5~25 0.5~20 180
JHC-250 1" 12 25mm 0.5~25 0.5~20 0.5~25 0.5~20 0.5~25 0.5~20 180
JHC-320 1 1/4" 24 35mm 0.5~25 0.5~20 0.5~25 0.5~20 0.5~25 0.5~20 180
JHC-400 1 1/2" 28 40mm 0.5~25 0.5~20 0.5~25 0.5~20 0.5~25 0.5~20 180
JHC-500 2" 48 50mm 0.5~25 0.5~20 0.5~25 0.5~20 0.5~25 0.5~20 180
Order Information:
  • Minimum Order: Negotiable
  • Branded Product
