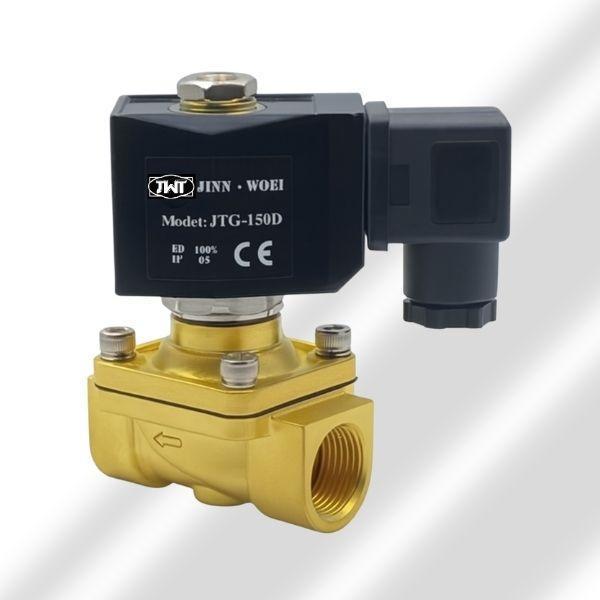

2/2 Way Zero-Differential Pilot-Operated Solenoid Valve

2/2 Way Zero-Differential Pilot-Operated Solenoid Valve
Product ID: JTG
  • 2/2 Way Normally Closed Zero-Differential Pilot-Operated Solenoid Valve, forged brass valve body.
  • Can be operated directly without differential pressure.

Specifications:
  • IP65 waterproof coil, compliant with CE standards.
  • Applicable fluids：Water, Air and Light oil.
Features:
  • Applicable ambient temperature: -5°C ~ +80°C.
  • Working pressure: 0~7 kgf/cm².
  • Voltage difference tolerance: ±10%.
See more complete detail
Model Port Size CV Orifice Size Operating Pressure kgf/cm² Size(mm) Weight(kg)
Water Air Light Oil L C H1 H2 B1 B2
JTG-150 1/2" 4.5 15mm 0~6 0~7 0~6 65 59 13.5 85 27 46 0.7
JTG-200 3/4" 8.6 20mm 0~6 0~7 0~6 72 59 16 88 32 55 0.99
JTG-250 1" 12 25mm 0~6 0~7 0~6 90 59 20 92 40 68 1.51
JTG-320 1 1/4" 24 35mm 0~6 0~7 0~6 110 62 25 103 50 80 1.72
JTG-400 1 1/2" 28 40mm 0~6 0~7 0~6 120 62 29 107 58 88 2.25
JTG-500 2" 48 50mm 0~6 0~7 0~6 145 62 35 113 70 110 3.28
Order Information:
  • Minimum Order: Negotiable
  • Branded Product
