Product

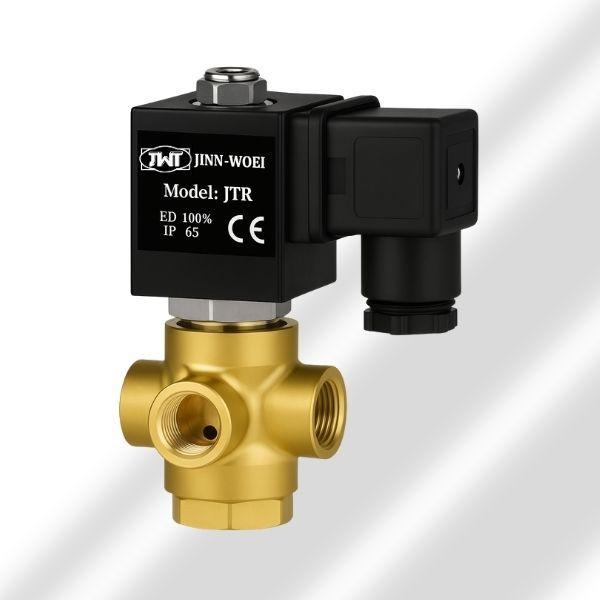

3/2-Way Direct-Acting Solenoid Valve (NC)

3/2-Way Direct-Acting Solenoid Valve (NC)
Product ID: JTR
  • 3/2 Way Direct-Acting Normally Closed Solenoid Valve, forged brass valve body.
  • Compact size with a wide range of applications and stable performance.
Specifications:
  • IP65 waterproof coil, compliant with CE standards.
  • Sealing materials：NBR、VITON、EPDM
  • Applicable fluids: Air and Liquid.
Features:
  • Working pressure: 0~11 kgf/cm².
  • Voltage difference tolerance: ±10%.

Model   Orifice Size CV Operating Pressure kgf/cm²
Liquid Gas
AC DC AC DC
JTR-01 2.0 0.14 0~11 0~9 0~11 0~9
JTR-02 2.5 0.21 0~9 0~7 0~9 0~7
Order Information:
  • Minimum Order: Negotiable
  • Branded Product
