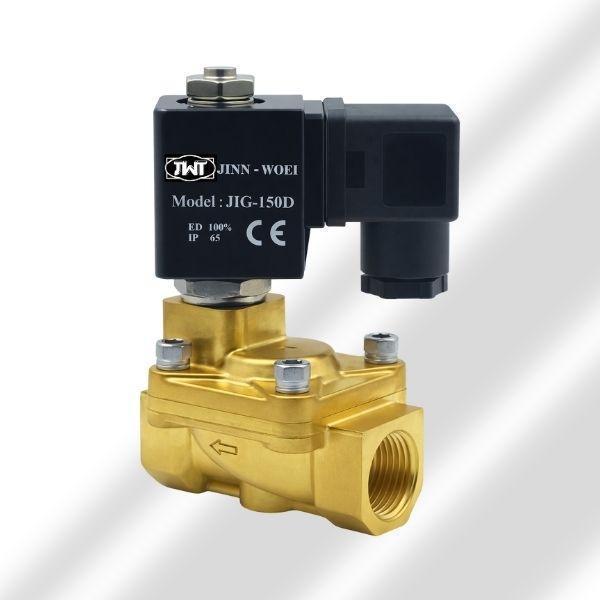

2/2 Way Pilot-Operated Diaphragm Solenoid Valve

2/2 Way Pilot-Operated Diaphragm Solenoid Valve
Product ID: JIG
  • 2/2 Way Normally Closed Pilot-Operated Diaphragm Solenoid Valve, forged brass valve body.
  • Designed for high flow rate applications with quick response performance.
Specifications:
  • IP65 waterproof coil, compliant with CE standards.
  • Applicable fluids：Water, Air and Light oil.
Features:
  • Applicable ambient temperature: -5°C ~ +80°C.
  • Working pressure: 0.5~10kgf/cm².
  • Voltage difference tolerance: ±10%.

See more complete detail
Model Port Size CV Orifice Size Operating Pressure kgf/cm² Size(mm) Weight(kg)
Water Air Light Oil L C H1 H2 B1 B2
JIG-150 1/2" 4.5 15mm 0.5~10 0.5~10 0.5~10 68 57 13.5 94 27 48 0.65
JIG-200 3/4" 8.6 20mm 0.5~10 0.5~10 0.5~10 76 57 16 98 32 56 0.83
JIG-250 1" 12 25mm 0.5~10 0.5~10 0.5~10 95 57 20 104 40 68 1.29
JIG-320 1 1/4" 24 35mm 0.5~10 0.5~10 0.5~10 115 57 25 110 50 80 1.91
JIG-400 1 1/2" 28 40mm 0.5~10 0.5~10 0.5~10 130 57 29 116 58 88 3.05
JIG-500 2" 48 50mm 0.5~10 0.5~10 0.5~10 160 57 35 125 70 110 3.71
Order Information:
  • Minimum Order: Negotiable
  • Branded Product
