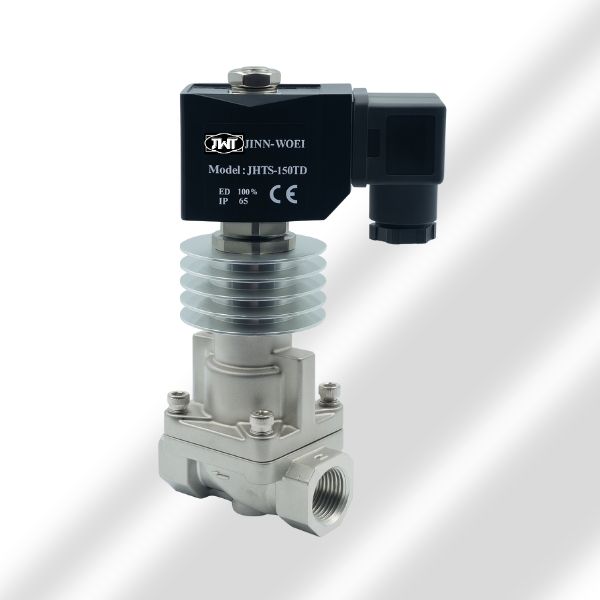

2/2 Way High-Temperature Solenoid Valve

2/2 Way High-Temperature Solenoid Valve
Product ID: JHTS
  • 2/2 Way Normally Closed High-Temperature Solenoid Valve, stainless steel body.
  • Compact design with wide application range and stable performance.
Specifications:
  • IP65 waterproof coil, compliant with CE standards.
  • Seal material：PTFE
  • Applicable fluids：Steam, Gas and Heat transfer oil.

Features:
  • Applicable ambient temperature: -20°C ~ 65°C.
  • Fluid temperature：0°C ~ 250°C.
  • Working pressure: 0.5~16 kgf/cm².
  • Voltage difference tolerance: ±10%.
Model Port Size CV Orifice Size Operating Pressure kgf/cm² Max. Fluid Temper.
Liquid Gas Steam
JHTS-150 1/2" 4.5 15mm 0.5~16 0.5~16 0.5~16 250
JHTS-200 3/4" 8.0 20mm 0.5~16 0.5~16 0.5~16 250
JHTS-250 1" 12 25mm 0.5~16 0.5~16 0.5~16 250
JHTS-320 1 1/4" 22 35mm 0.5~16 0.5~16 0.5~16 250
JHTS-400 1 1/2" 28 40mm 0.5~16 0.5~16 0.5~16 250
JHTS-500 2" 48 50mm 0.5~16 0.5~16 0.5~16 250
Order Information:
  • Minimum Order: Negotiable
  • Branded Product
